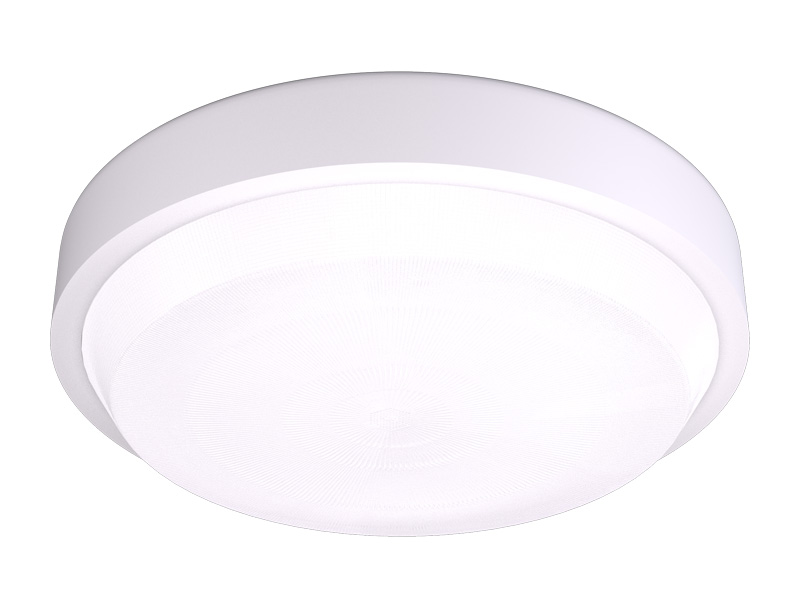

Multi
Industrial surface mounted or suspended.
A technical luminaire that, thanks to its outstanding lighting properties and good looks, has endless application opportunities – hence the name!
Multi overview.
Design
Low-profile, extruded, rolled and welded aluminium housing, sealed and powder coated white. Aluminium body and backplate with unique ‘twist and lock’ mounting method for simple installation, including IP68 cable entry gland and integrated cord grip.
Lens Options

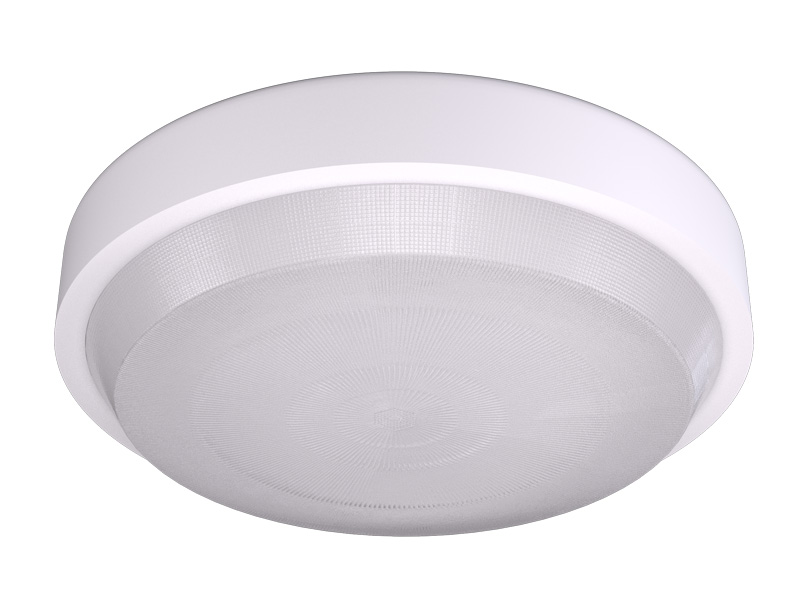

Sealed acrylic lens for high quality, low glare illumination.
IK10 Polycarbonate lens available for non-food applications, and applications where impact may be a concern.
Control Options
Fixed output driver
DALI dimmable
Integrated microwave motion sensor option
Beam Angle
Broad distribution
Colour Temperature
4000K CRI80 as standard
4200K MelaGen Blue CRI90
Electrical
Driver 350mA – 675mA
Wattage 75W – 150W
Outputs
Up to 25,000lm fixture output
> 130lm/W efficacy
Multi
Low-maintenance, cost-effective and visual comfort.
A technical luminaire that, thanks to its outstanding lighting properties and good looks, has endless application opportunities – hence the name!
IP65 industrial LED luminaire with a specialised optical system for improved performance and visual comfort. cost-effective, low-maintenance and low-glare design minimises shadowing and delivers multiple benefits to the client and occupants. Fully surface mounted with smooth vertical-sided housing for Primary Industry applications.
Unique Features
- Uses Architech’s unique faceted refractor for outstanding light output, low-glare properties and broad distribution.
- IP65 construction for wet, cold or humid environments.
- Integrated pressure compensation filter eliminates condensation and contaminants.
- Shallow profile to suit lower mounting heights.
- Available with MelaGen® Blue.
- Comes surface mounted as standard, option for suspension kit.
Applications
- Carpark entries and transition zones
- Gas station shelters
- Loading docks
- General industrial
- Food preparation areas
- Cool Rooms
- Cold Rooms
- Workshops
Product Information
Downloads
Multi Range
| CODE | PRODUCT | SIZE | LENS | OUTPUT | CONTROL | CCT | CRI | FINISH | EXTRA |
|---|---|---|---|---|---|---|---|---|---|
| MULTIMA.350FO.4080A.1 | MULTI | M | Acrylic | 350mA | Fixed Output | 4000K | Ra80 | White | |
| MULTIMA.350DD.4080A.1 | MULTI | M | Acrylic | 350mA | DALI Dimmable | 4000K | Ra80 | White | |
| MULTIMA.500FO.4080A.1 | MULTI | M | Acrylic | 500mA | Fixed Output | 4000K | Ra80 | White | |
| MULTIMA.500DD.4080A.1 | MULTI | M | Acrylic | 500mA | DALI Dimmable | 4000K | Ra80 | White | |
| MULTIMA.675FO.4080A.1 | MULTI | M | Acrylic | 675mA | Fixed Output | 4000K | Ra80 | White | |
| MULTIMA.675DD.4080A.1 | MULTI | M | Acrylic | 675mA | DALI Dimmable | 4000K | Ra80 | White | |
| MULTIMP.350FO.4080A.1 | MULTI | M | Polycarbonate | 350mA | Fixed Output | 4000K | Ra80 | White | |
| MULTIMP.350DD.4080A.1 | MULTI | M | Polycarbonate | 350mA | DALI Dimmable | 4000K | Ra80 | White | |
| MULTIMP.500FO.4080A.1 | MULTI | M | Polycarbonate | 500mA | Fixed Output | 4000K | Ra80 | White | |
| MULTIMP.500DD.4080A.1 | MULTI | M | Polycarbonate | 500mA | DALI Dimmable | 4000K | Ra80 | White | |
| MULTIMP.675FO.4080A.1 | MULTI | M | Polycarbonate | 675mA | Fixed Output | 4000K | Ra80 | White | |
| MULTIMP.675DD.4080A.1 | MULTI | M | Polycarbonate | 675mA | DALI Dimmable | 4000K | Ra80 | White | |
| MULTIMA.350FO.4080A.1.FMS | MULTI | M | Acrylic | 350mA | Fixed Output | 4000K | Ra80 | White | Fixed Output Integrated Microwave Sensor |
| MULTIMA.350DD.4080A.1.FMS | MULTI | M | Acrylic | 350mA | DALI Dimmable | 4000K | Ra80 | White | Fixed Output Integrated Microwave Sensor |
| MULTIMA.500FO.4080A.1.FMS | MULTI | M | Acrylic | 500mA | Fixed Output | 4000K | Ra80 | White | Fixed Output Integrated Microwave Sensor |
| MULTIMA.500DD.4080A.1.FMS | MULTI | M | Acrylic | 500mA | DALI Dimmable | 4000K | Ra80 | White | Fixed Output Integrated Microwave Sensor |
| MULTIMA.675FO.4080A.1.FMS | MULTI | M | Acrylic | 675mA | Fixed Output | 4000K | Ra80 | White | Fixed Output Integrated Microwave Sensor |
| MULTIMA.675DD.4080A.1.FMS | MULTI | M | Acrylic | 675mA | DALI Dimmable | 4000K | Ra80 | White | Fixed Output Integrated Microwave Sensor |
| MULTIMP.350FO.4080A.1.FMS | MULTI | M | Polycarbonate | 350mA | Fixed Output | 4000K | Ra80 | White | Fixed Output Integrated Microwave Sensor |
| MULTIMP.350DD.4080A.1.FMS | MULTI | M | Polycarbonate | 350mA | DALI Dimmable | 4000K | Ra80 | White | Fixed Output Integrated Microwave Sensor |
| MULTIMP.500FO.4080A.1.FMS | MULTI | M | Polycarbonate | 500mA | Fixed Output | 4000K | Ra80 | White | Fixed Output Integrated Microwave Sensor |
| MULTIMP.500DD.4080A.1.FMS | MULTI | M | Polycarbonate | 500mA | DALI Dimmable | 4000K | Ra80 | White | Fixed Output Integrated Microwave Sensor |
| MULTIMP.675FO.4080A.1.FMS | MULTI | M | Polycarbonate | 675mA | Fixed Output | 4000K | Ra80 | White | Fixed Output Integrated Microwave Sensor |
| MULTIMP.675DD.4080A.1.FMS | MULTI | M | Polycarbonate | 675mA | DALI Dimmable | 4000K | Ra80 | White | Fixed Output Integrated Microwave Sensor |
| MULTIMA.350FO.4080A.1.DMS | MULTI | M | Acrylic | 350mA | Fixed Output | 4000K | Ra80 | White | DALI Integrated Microwave Sensor |
| MULTIMA.350DD.4080A.1.DMS | MULTI | M | Acrylic | 350mA | DALI Dimmable | 4000K | Ra80 | White | DALI Integrated Microwave Sensor |
| MULTIMA.500FO.4080A.1.DMS | MULTI | M | Acrylic | 500mA | Fixed Output | 4000K | Ra80 | White | DALI Integrated Microwave Sensor |
| MULTIMA.500DD.4080A.1.DMS | MULTI | M | Acrylic | 500mA | DALI Dimmable | 4000K | Ra80 | White | DALI Integrated Microwave Sensor |
| MULTIMA.675FO.4080A.1.DMS | MULTI | M | Acrylic | 675mA | Fixed Output | 4000K | Ra80 | White | DALI Integrated Microwave Sensor |
| MULTIMA.675DD.4080A.1.DMS | MULTI | M | Acrylic | 675mA | DALI Dimmable | 4000K | Ra80 | White | DALI Integrated Microwave Sensor |
| MULTIMP.350FO.4080A.1.DMS | MULTI | M | Polycarbonate | 350mA | Fixed Output | 4000K | Ra80 | White | DALI Integrated Microwave Sensor |
| MULTIMP.350DD.4080A.1.DMS | MULTI | M | Polycarbonate | 350mA | DALI Dimmable | 4000K | Ra80 | White | DALI Integrated Microwave Sensor |
| MULTIMP.500FO.4080A.1.DMS | MULTI | M | Polycarbonate | 500mA | Fixed Output | 4000K | Ra80 | White | DALI Integrated Microwave Sensor |
| MULTIMP.500DD.4080A.1.DMS | MULTI | M | Polycarbonate | 500mA | DALI Dimmable | 4000K | Ra80 | White | DALI Integrated Microwave Sensor |
| MULTIMP.675FO.4080A.1.DMS | MULTI | M | Polycarbonate | 675mA | Fixed Output | 4000K | Ra80 | White | DALI Integrated Microwave Sensor |
| MULTIMP.675DD.4080A.1.DMS | MULTI | M | Polycarbonate | 675mA | DALI Dimmable | 4000K | Ra80 | White | DALI Integrated Microwave Sensor |
